VDL - 1 Series Scroll
Parts Washing Machines

VDL AR 02-min
VDL1 DR 02-min
VDL1 DR 04-min
VDL1 DR 06-min
VDL AR 02-min
VDL1 DR 02-min
VDL1 DR 04-min
VDL1 DR 06-min

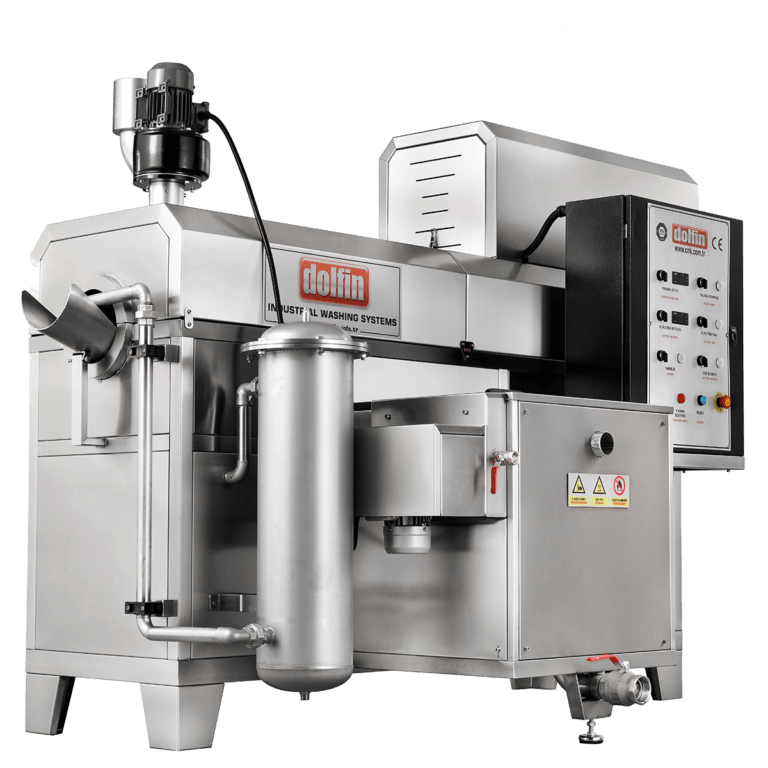

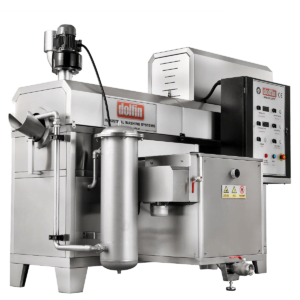

VDL-1 Series Scroll Parts Washing Machines

WORKING PRINCIPLES :

The parts are poured in horizontally bedded scroll through the inlet port and while moving through the spiral toward the outlet port of the machine they are washed by alkali chemical pulverized via nozzles. Because the part is rotating and rolling up and down in the drum it’s every piece is being washed. In this machine parts are being dried after the wash. This machine is used mostly for the parts which are not suitable for washing in basket, it is appropriate for degreasing, deburring and cleaning. It attains the maximum saving in the expenditure made for the cleaning quality aimed at this sort of washing process.

UTILIZATION FIELDS :

These devices are used for parts,
- Cleaning oil/Burr and contaminants on the surfaces,
- Removing the stain on Metal Surface,
- Performing dephosphate processes,
Some of the industries where VDL Series parts washing machines are used are as follows; -Bolt manufacturers,
- Screw Manufacturers,
- Nut Manufacturers,
- Washer Manufacturers,
- Fittings Parts Manufacturers,
- Coupling manufacturers,
- Automated parts manufacturers,
- Automotive spare Parts Production Factories,
- Machine and part manufacturers,
- Medical Parts and Device manufacturers,

Features Distinguishes Dolfin from its Competitors,

Our After-Sales Service,
Full Compliance to CE Standards,
AISI 304 L/ 1.4301 Stainless Steel Main Body,
AISI 304 L/ 1.4301 Stainless Steel Pump,
AISI 304 L/ 1.4301 Stainless Steel Tank,
Drum Construction
Dual Filtration,
Precise Filtration
Secure Full Protection,
Wide-Range Functionality

Standard Features :

- AISI-304 Stainless Steel Main Body
- AISI 304 K Stainless Steel Tank
- AISI-304 Stainless Steel Electro-Pump
- Electrical Resistance Heater
- Mechanically Driven Washer Basket
- Tank Heat Insulation
- Tank Level Protection
- Dual Filtration
- Automatic Washing Cycle
- Emergency Stop Button
- Digital Indicator
- Drier
- Adjustable Drum Speed
- Temperature Controller

Optional Features :

- Oil Scraper (Disc Type)
- Automatic Tank Discharge Unit
- Automatic Part Loading
- Precise Filtration
- Automatic Tank Filling
- Vapour Exhaust Unit
- Cascade System Between Warehouses

Do you want to get more details about our products ?

You can contact our professional team for detailed information.

Dolfin Parts Washing Machines are manufactured for more than 40 years. It has delivered more than 5,000 standard or specially designed parts washing machines to its customers in more than 30 countries on 5 continents.
