RTS Series Rotary Table
Sensitive Washing Machines

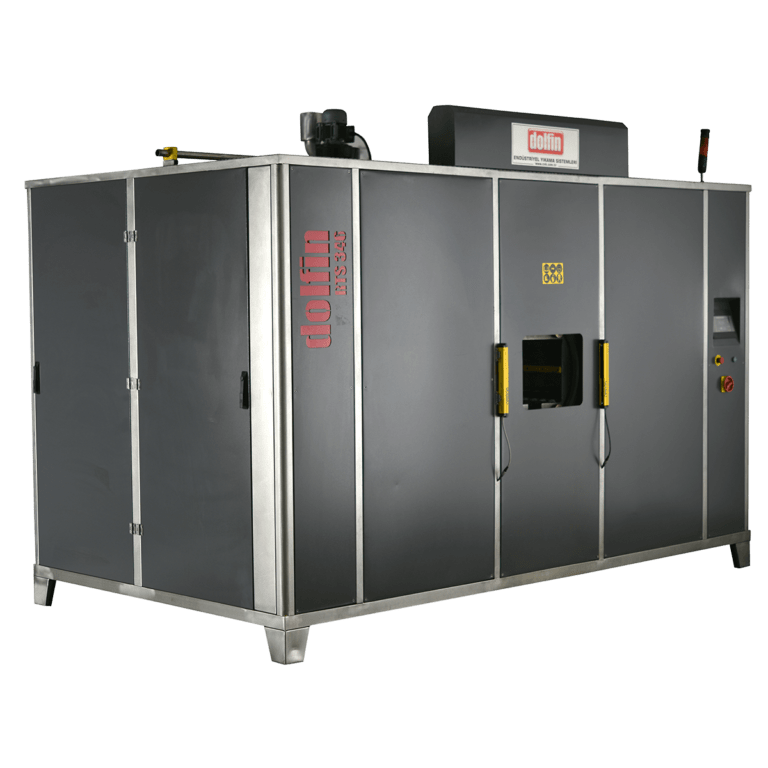

RTS Series Rotary Table Sensitive Washing Machines
WORKING PRINCIPLES :
This machine allows us to wash, rinse, and dry mass production parts before assembly and packing. Generally, parts in the baskets that are moving on the conveyor are fallen into the machine by manual or pneumatically. The door locked automatically and wash, rinse and dry operations are handled in the drum. Hot air or vacuum dry is applied. Optionally ultrasonic units can be attached to increase the washing quality. This model is employing both spray and soak cleaning that improves the cleanliness at the maximum level.
UTILIZATION FIELDS :
These devices are used for parts,
- Cleaning oil/Burr and contaminants on the surfaces,
Some of the industries where RTS Series parts washing machines are used are as follows;
- Automotive spare Parts Production Factories,
- Aircraft Part Manufacturers
- Machine and part manufacturers,
- Medical Parts and Device manufacturers,
- Automobile Repair and Maintenance Services
- Weapon Manufacturers,
Features Distinguishes Dolfin from its Competitors,
Our After-Sales Service,
Full Compliance to CE Standards,
AISI 304 L/ 1.4301 Stainless Steel Main Body,
AISI 304 L/ 1.4301 Stainless Steel Pump,
AISI 304 L/ 1.4301 Stainless Steel Tank,
Drum Construction
Dual Filtration,
Precise Filtration
Secure Full Protection,
Wide-Range Functionality
Standard Features :
- AISI-304 Stainless Steel Main Body
- ISI 304 K Stainless Steel Tank
- AISI-304 K Stainless Steel Electro-Pump
- Electrical Resistance Heater
- PLC Control Unit
- Touch Screen Control Board
- Tank Level Protection
- Dual Filtration
- Automatic Washing Cycle
- Emergency Stop Button
- Drier
- Adjustable Drum Speed
- Oil Scraper (Disc Type)
- Steam Relief Unit
- Tank Heat Insulation
Optional Features :
- Automatic Tank Discharge Unit
- Automatic Part Loading
- Acidic Washing Application
- Automatic Tank Filling
- Precise Filtration
- Manual Loading Table
- Vacuum Drying
- Ultrasonic Washing Unit
- Oil Separator Unit
Do you want to get more details about our products ?
You can contact our professional team for detailed information.
Dolfin Parts Washing Machines are manufactured for more than 40 years. It has delivered more than 5,000 standard or specially designed parts washing machines to its customers in more than 30 countries on 5 continents.
